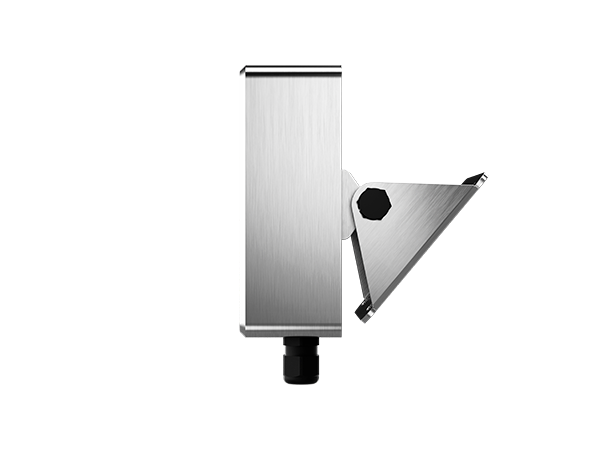

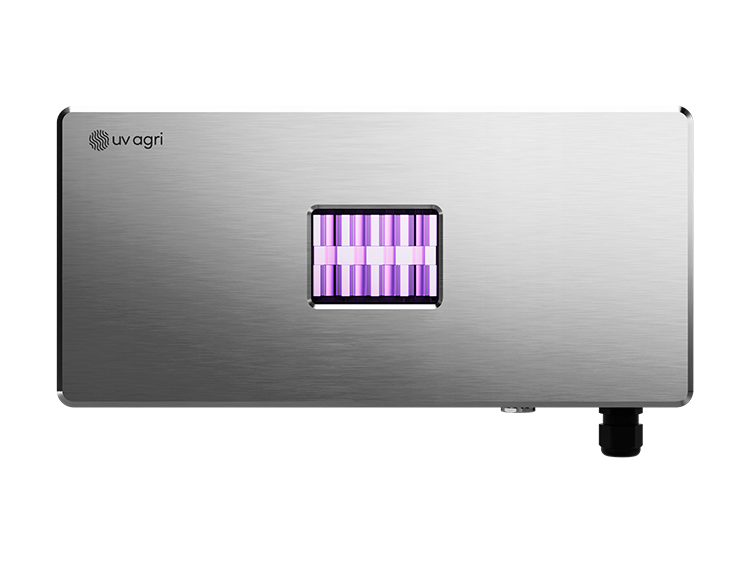

UV222 Agri

Far-UVC Disinfection for Pig & Poultry Facilities

The UV222 Agri Industrial lamp brings powerful 222 nm Far-UVC protection to demanding farm environments. Housed in an IP66-rated aluminum shell with IK06 impact resistance, it endures dust, high humidity, and pressure-wash cleaning—perfect for pig barns, chicken coops, and other biosecure areas requiring relentless hygiene.



Built for Tough Farm Conditions

  • Chemical-free, continuous disinfection using Far-UVC 222 nm light

  • IP66-rated enclosure for complete dust- and water-tight performance

  • IK06 impact resistance ensures durability in busy agricultural settings

  • Beam options: Choose 60° for focused coverage or 100° for broad-area sanitation

  • Flexible operation: Set to run continuously, on a duty cycle, or activate via motion sensors

  • Smart monitoring: Integrated IoT connectivity lets you track performance and adjust settings remotely

Safety & Compliance

Engineered to meet ISO 15858, IEC 62471, and ACGIH® guidelines, the UV222 Agri lamp stays within safe exposure limits for both animals and staff—allowing uninterrupted use in occupied barns and coops.

Low Maintenance, High Uptime

With solid-state construction and mercury-free Far-UVC emitters, UV222 Agri delivers reliable sanitization with minimal upkeep. Its robust design and long-lasting components help you maximize operational efficiency—keeping your livestock healthy and your farm productive.

logos



UV222 Agri

Product Images



No Results
    FAQs

    Everything you need to know about the UV222 Agri

    Light source Krypton chloride excimer lamp
    Wave length 222 nm
    Output (60° beam angle) 115 mW (Typical)
    Output (100° beam angle) 70 mW (Typical)
    Input voltage 100-240 V AC 50/60 Hz
    Mode Continuous / duty cycle / motion activated
    Max power consumption 20 W
    Weight 3 kg (6.6 lbs)
    Dimensions 300 x 168 x 113 mm (11.8 x 6.6 x 4.4 in)
    Power lead (rubber) 3 x 0.75 mm² / 10 m (18 AWG / 32.8 ft)
    Operating temperature -10° to + 50° C (14° to 122° F)




    Light measurement results


    60° beam angle   100° beam angle

    126.92 mW

    Output – total optical power flux, 200 nm – 850 nm

    75.72 mW

    120.79 mW

    Far UV-C 200 nm – 230 nm

    58.79 mW

    6.81 mW

    		 VIS-IR: 400 nm – 850 nm

    10.71 mW

    0.926 %

    Radiated power/lamp power

    0.57 %

    222 nm

    Peak emission wavelength

    222 nm

    13.8 μW/cm2

    UV (222 nm) irradiance at centre at 1 m (3’ 10”)

    3.2 μW/cm2

    60°

    Beam angle

    		 100°
